Installing the hose for the heater pipe

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

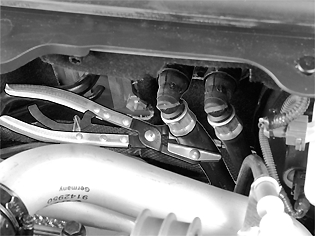

Fig 1: Heater Hoses And Clamp
GLL109584Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the hose on the heater pipe in the firewall.

Press the radiator hose quick-release connector into place on the heater pipe.

Check:  Pull the hose.
