Installing the front cross member

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Exhaust Pipe Bracket Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the front SIPS member. Press the brake pipe into place in the member.

Install the rubber mounting for the three-way catalytic converter (TWC) in the bracket on the sub-frame.

Fig 2: Identifying EVAP Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the EVAP-cable according to earlier routing in the subframe's clips and press in the cable in the rubber connection.

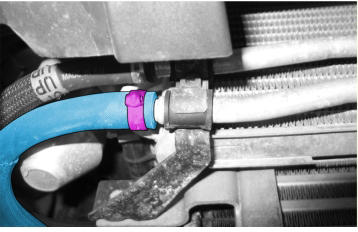

Fig 3: Identifying Servo Return Line

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install servo return line on oil cooler.
