Installing the engine mounting together with the bracket and the splash guard

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

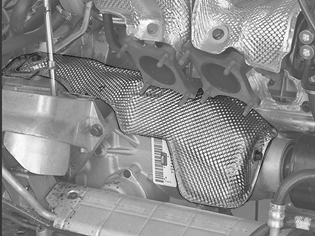

Fig 1: Identifying Splash Guard Above Transmission

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the engine mounting together with the splash guard
the 4 screws for the engine mounting to the transmission
the screw on the bracket that extends from the top of the engine mounting to the top of the transmission (not the nut on the top of the rubber mounting)
the screw on the splash guard beside the right-hand drive shaft.

Tighten.
