Installing the drive shaft in the wheel hub, both sides
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
Lubricate the drive shaft splines for the wheel hub using a small amount of oil.

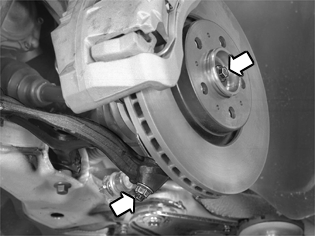

Hold down the control arm. Align the drive shaft in the hub. Remove the guard from the ball joint. Align the ball joint lug in the control arm. Install a new lock nut on the ball joint. Tighten. See: Tightening torque .
NOTE:
Counterhold with a Torx wrench in the ball joint's end while tightening so that the gaiter does not twist.
Install a new screw for the drive shaft / wheel hub. Tighten.
