Installing the drive shaft in the transmission, both sides

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

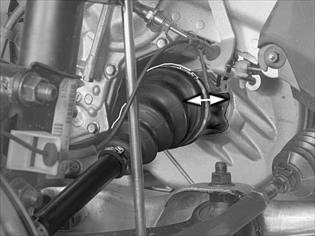

Fig 1: Drive Shaft Mating Surface

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate the drive shaft mating surface.

Use oil, Volvo P/N 116 1521-8 (1 liter container).

Press the drive shaft into the transmission. Check that the snap ring is in the groove on the transmission by pulling the constant velocity joint.

NOTE:

There is no lock ring on the right side.

NOTE:

Do not pull on the drive shaft as the axial stops cannot support high loads.
