Installing the chain hosing and bevel gear
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

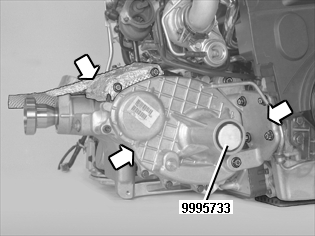

Install:
- the bevel gear - chain housing on the transmission. Lightly tighten the 2 M10 screws alternately. Tighten
- the bracket between the engine and the chain housing. Lightly tighten the 4 M10 screws to the cylinder block
- the 2 M10 screws to the chain housing - bracket. Tighten.
Tighten the 4 M10 screws for the bracket - cylinder block. Tighten.
