Removing engine compartment components

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

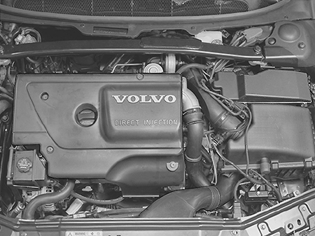

Fig 1: Identifying Engine Compartment Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the four screws for the engine cover
the air cleaner (ACL) housing assembly. see Remove the air cleaner (ACL) housing
the charge air pipe from the intake manifold. Slacken off the hose clamp. Heat the pipe using a hot-air gun and carefully pull it away.
