Removing the carrier plate

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Gear Sector

Courtesy of VOLVO CARS OF NORTH AMERICA.

Block the carrier plate using gear sector 9995112 .

Remove:

all screws
the carrier plate and the washers
gear sector 9995112 .

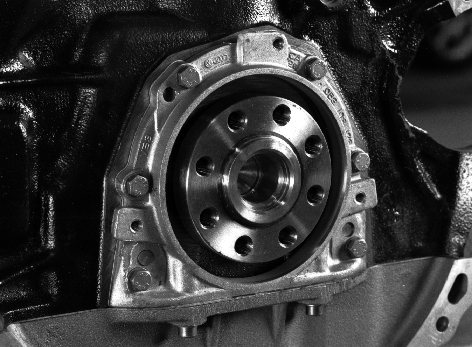

Fig 2: Checking Crankshaft Seal For Leakage

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check the crankshaft seal for leakage.
