Removing Bulbs

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Lamp Holder Spring Clip

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the spring clip on the lamp holder. Angle out and remove the lamp holder.

Remove the bulb.

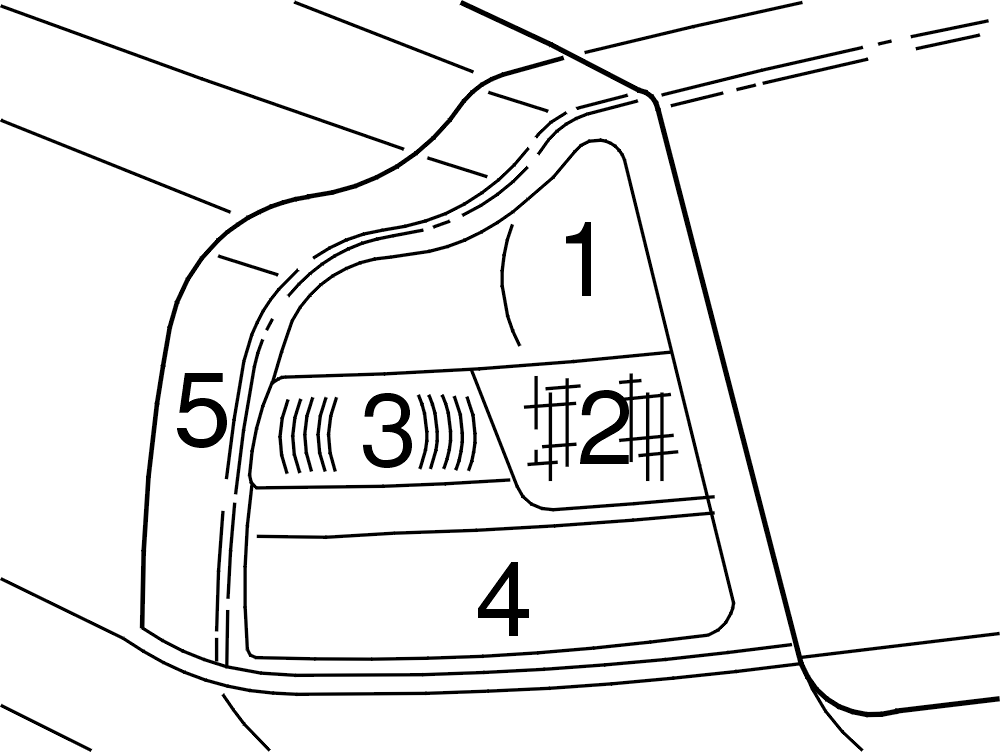

Fig 2: Tail Lamp Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

For the location of lamps in the tail lamp, see the illustration.

Tail lamp/rear fog lamp
Back-up (reversing) lamps
Turn signal lamps

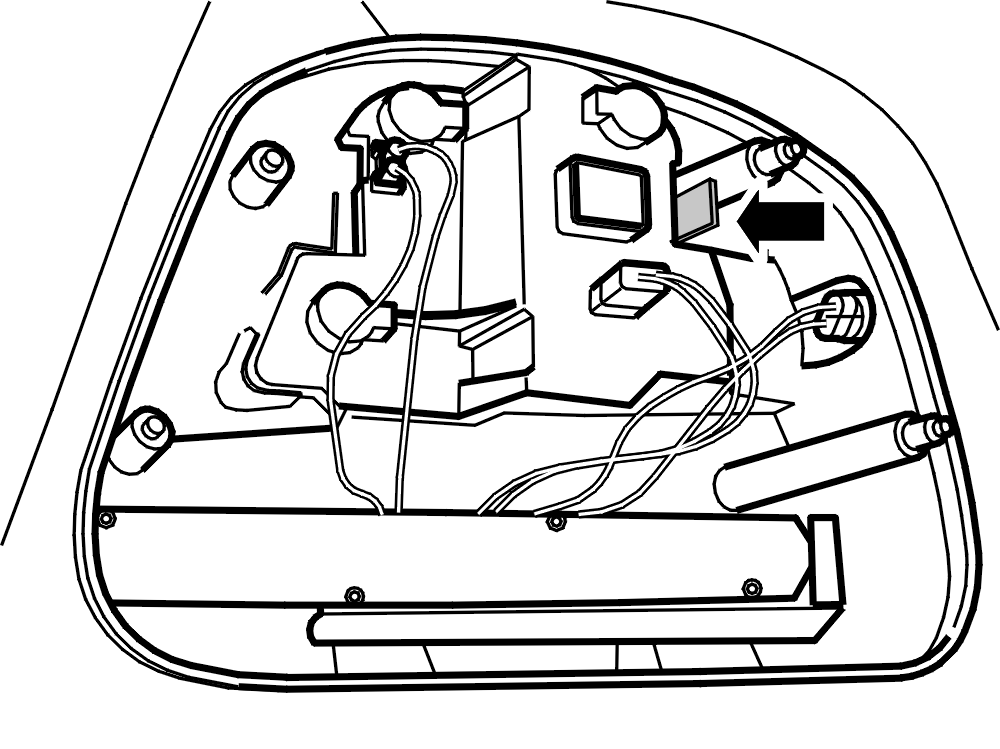

The diode card for the stop lamp. To replace, see Tail Lamp Assembly
Side marker lamps.

NOTE:

There is only a fog tail lamp bulb in one of the tail lamps. In the left tail lamp on left-hand drive cars and in the right on right-hand drive cars.
