Tail Lamp Assembly

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

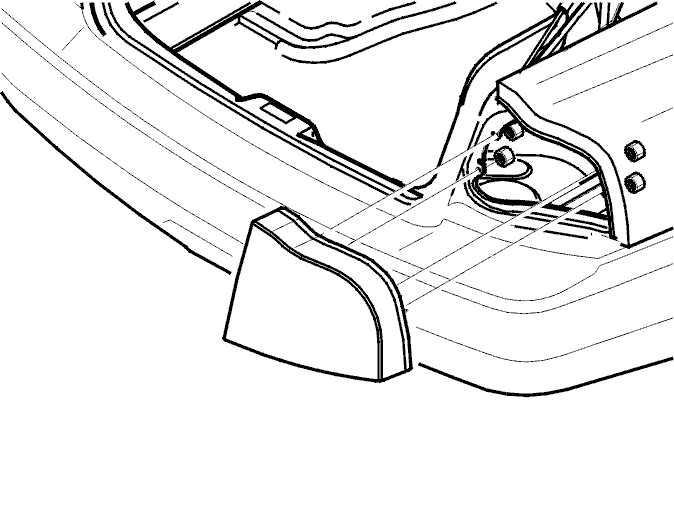

Fig 1: Identifying Tail Lamp Assembly
GLL103095Courtesy of VOLVO CARS OF NORTH AMERICA.

Disconnect the connectors.

Remove the tail lamp nuts (4).

Remove the tail lamp.
