Installing the cable conduit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

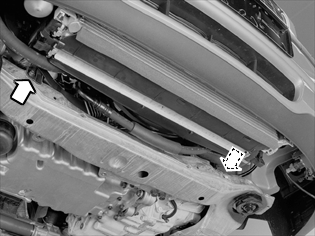

Fig 1: Fuel Line For Heater And Sub-Frame

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the cable duct to the subframe
the ground cable to the subframe
auxiliary heater/parking heater to the bracket in the subframe and the fuel line to the brackets (if fitted to the vehicle)
the front splash guard
the splash guard under the engine
the wheels. See Installing wheels .
