Installing service clips

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

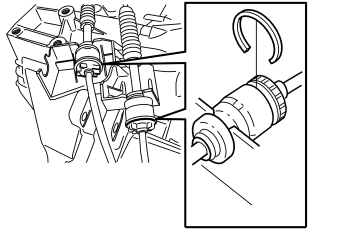

Fig 1: Gear Selector Cable And Clip

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

The automatic transmission has a gear selector cable while the manual transmission has two gear selector cables.

Ensure that the gear selector cable is engaged before fitting the blue clip. Press the clip into position as shown in the illustration.

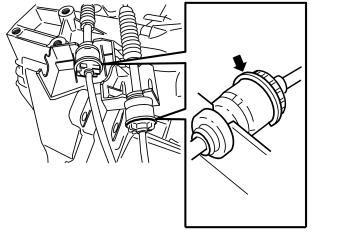

Fig 2: Clip Positioned In Groove

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check that the clip is positioned in the groove as shown in the illustration.
