Installing engine compartment components

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

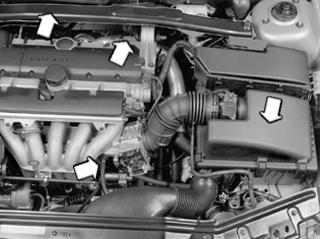

Fig 1: Air Cleaner Housing, Hoses And Electrical Terminals

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies only to turbocharged engines, fit:

the control valve to the fan cover
the charge air pipe over the engine
the air cleaner (ACL) housing assembly with the intake manifold and connections
the cover at the side of the air cleaner (ACL) housing (Applies only to B5254T4)
the ground cable to the bracket on the engine (certain variants)
the upper torque rod between the wheel housings. Tighten the screws, M10
the screw, M12, to position rod/engine mounting. Tighten.

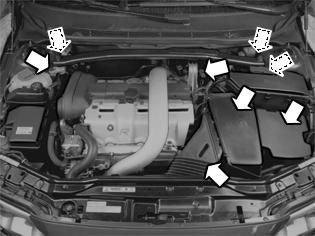

Fig 2: Engine Compartment Covers

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Air Cleaner Housing, Vacuum Hoses And Ground Strap

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies only to naturally aspirated engines, fit:

the air cleaner (ACL) housing with the intake manifold and preheating hose
the vacuum hoses, 2, from the intake manifold to the control valves
the ground cable to the bracket on the engine (certain variants)
the upper torque rod between the wheel housings. Tighten the screws, M10
the screw, 1 x M12, to the torque rod/engine mounting. Tighten.
