Locate the butt connector in the crimp tool
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
Use the crimp tool recommended in Other tools .

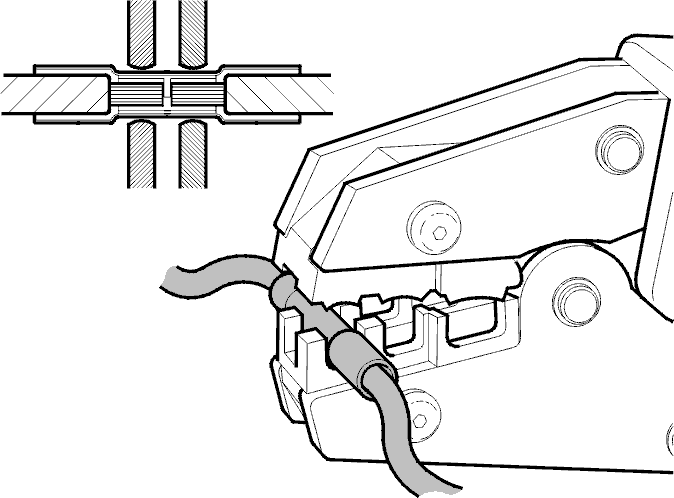

- Locate the butt connector in crimp tool jaws
Use the correct insert that matches the area of the butt connector.
- Apply pressure to the tool grips until the insert in the jaws retains the without deforming it.
- Insert cables in both ends of the so that each stripped section of core is up against the center divider in the butt connector.
