Removing the gear cables from the levers and attachments on the gearbox
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

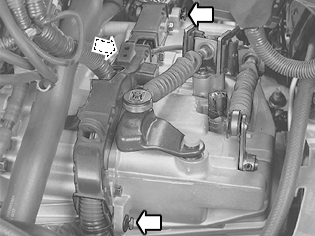

Remove:
- cable conduit from the gearbox, 2 screws, 1 nut
Use jimmy bar 9997077 to detach the ball joint for the gear cable from the levers.
Detach the casing for the gearbox cables from the bracket in the gearbox by pressing the locking sleeve backwards.
Lift up the gearbox cables.
Tie up the gearbox cables.
Disconnect the connector from the reversing lamp switch.
Remove:
- the outer lever by knocking out the pin, move it over to the new gearbox
- the screws from the mechanical cable
- the bracket (from the gearbox).
