Removing engine compartment components

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Air Cleaner Housing, Hoses And Electrical Terminals

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

air filter housing complete with inlet manifold. Pull up the air filter housing from its attachments and undo the ground cable.

Applies only to turbocharged engines:

Remove the screws for the charge air pipe bracket on the inlet manifold.

Remove the charge air pipe from the intercooler.

HINT: Heat the pipe with a hot-air gun

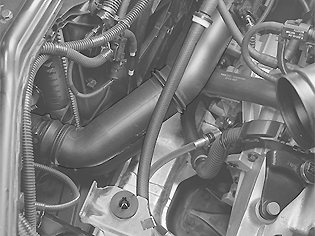

Fig 2: Identifying Vacuum Hose And Air Cleaner Clip

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the screw from the hose clamp holding the cable harness.

Remove the vacuum hose from the clip at the air cleaner (ACL) bracket.
