Reinstall the exhaust pipe

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

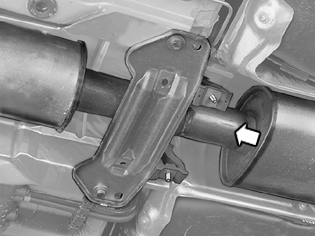

Fig 1: Identifying Rear Exhaust Mounting Installed On Cross Member

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the rear exhaust mounting on the cross member
the nuts for the exhaust mounting. Tighten to 25 Nm .
