Install the torque converter screws

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

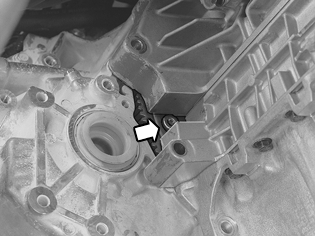

Fig 1: Identifying Torque Converter Screw

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Use new screws, Torx TX50.

Align the torque converter against the carrier plate. Do this by turning the engine with the nut for the crankshaft pulley and turning the torque converter.

Install all 6 screws loosely. Tighten the screws until the heads are in contact with the carrier plate. Then tighten to 35 Nm . Use Torx socket TX50

NOTE:

Remove the socket wrench from the crankshaft.
