Install the screw for the ground lead and the cable conduit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

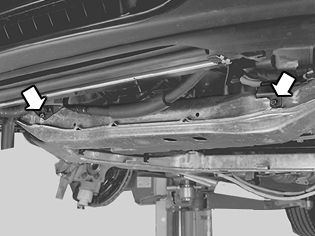

Fig 1: Identifying Sub-Frame Cable Conduit And Ground Lead Bracket Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Cars with parking heater: Install the heater in the bracket. Tighten the nuts to 25 Nm .

Install:

the screw for the ground lead bracket in the sub-frame. Tighten to 10 Nm
the screw in the cable conduit
the front splash guard
the splash guard under the engine
the nuts for the left fender liner.

Rivet the fender liner into place.

Install the wheels. See Installing wheels .
