Install and tighten the sub-frame screws

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

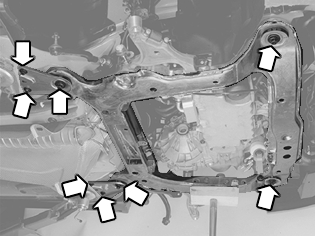

Fig 1: Locating Sub-Frame Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the screws for the support bracket.

First tighten the screws on the left-hand side of the subframe, followed by the right, to 105 Nm + 120° . Use a bevel protractor 9512050 .

Then tighten the screws on the subframe brackets. Tighten to 50 Nm .

Cars with parking heaters:

Install the parking heater in the bracket. Tighten the nuts. Tighten to 25 Nm .
