Check the transmission oil level

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

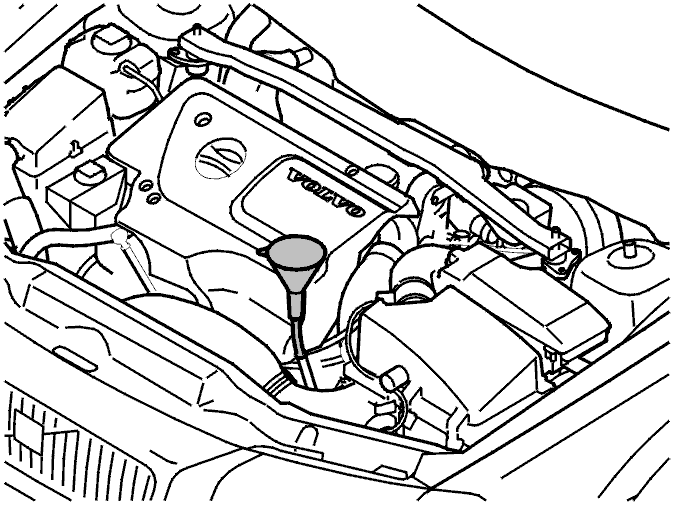

Fig 1: Filling Transmission Fluid Through Dipstick Pipe Using Funnel With Plastic Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Oil grade: Only automatic transmission fluid (ATF). Dexron III (the fluid must have a G license)*.

*This is usually given as "Dexron III (G-xxxxx)" where xxxxx is a 5 digit serial number. "Dexron III-G" (without a number) may also occur. Dexron II D and II E must not be used.

Use a funnel with a plastic hose. Fill through the dipstick pipe.

Measure the amount of oil that was drained. Fill with the same amount of new oil.

Start the engine. Move the gear selector through all the gear positions. Position the selector in position P and allow the transmission to reach operating temperature (80°C).

Check the level.

Test drive the car

Use the test driving schedule, see Test Drive Form, description .

NOTE:

After replacing the transmission, the transmission adaptation and the "Transmission oil change" counters must be reset. See Resetting the adaptation .
