Choose the terminal removal tool with the correct width

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

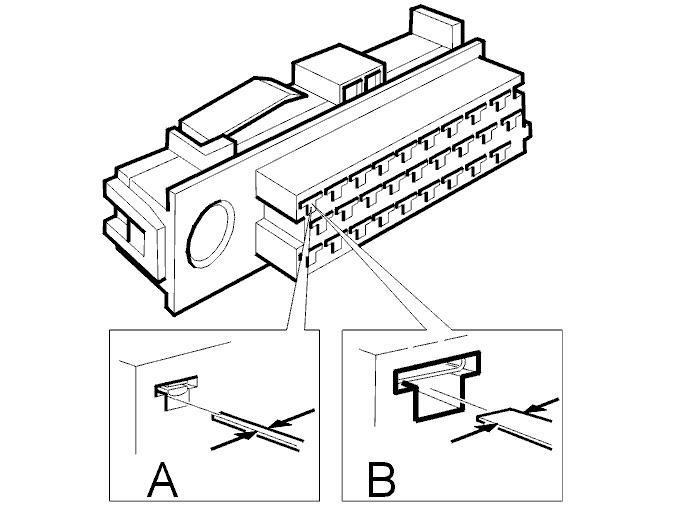

Fig 1: Identifying Two Sizes Of Cavity Opening

Courtesy of VOLVO CARS OF NORTH AMERICA.

There are two sizes of the cavity opening.

See illustration.

Choose a terminal removal tool with ends which match the cavity opening extraction groove.

The narrow ends are 1.5 mm wide.
The wider ends are 2.7 mm wide.

Press the cable terminal in the cavity forwards as far as it will go to free the locking tab from the cavity catch.

Insert the terminal removal tool in the groove as shown in the illustration.

Always follow the instructions in section. See When secondary locking is of the lid type which give the correct working procedure.

Proceed to chapter. See New cable terminal Seal SWS and plug . Replacing a cable terminal in order to crimp a new cable terminal.
