Identify the cable terminal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

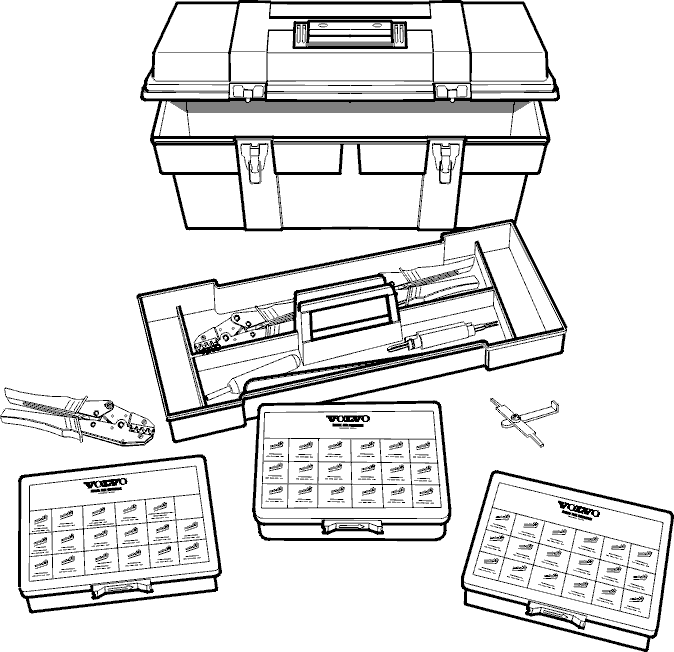

Fig 1: Identifying Repair Kit P/N 981 4235

Courtesy of VOLVO CARS OF NORTH AMERICA.

First compare the cable terminal removed from the housing with the cable terminals in the repair kit p/n 9814235 . Look inside the box lid and compare the terminal with those in the assortment available in the box.

NOTE:

Cable area

When the correct type of cable terminal is identified choose one of the right size for the cable area required.

Seal SWS

For cable terminals designated SWS a seal must be used. See Seal SWS and plug .

Stripping the cable insulation

Proceed to chapter Stripping the cable .
