(When the cable terminals are partly exposed with the locking tabs visible in the cavities)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Housings of this type have partly exposed cable terminals on the contact side with the locking tabs visible in the cavities.

Usually this type only includes tab cable terminals with one locking tab.

Illustrated are:

Fig 1: Identifying SWS (Single Wire Seal) Tab

Courtesy of VOLVO CARS OF NORTH AMERICA.

A 2.8 Tab SWS

Fig 2: Identifying 6.3 Sized Locking Tab

Courtesy of VOLVO CARS OF NORTH AMERICA.

B 6.3 Tab (also in sizes 2.8 and 9.5)

Use terminal removal tool p/n 9512644 .

The illustration below shows a housing with tabs. To extract pin cable terminals read the instructions at Housings with round cavity opening .

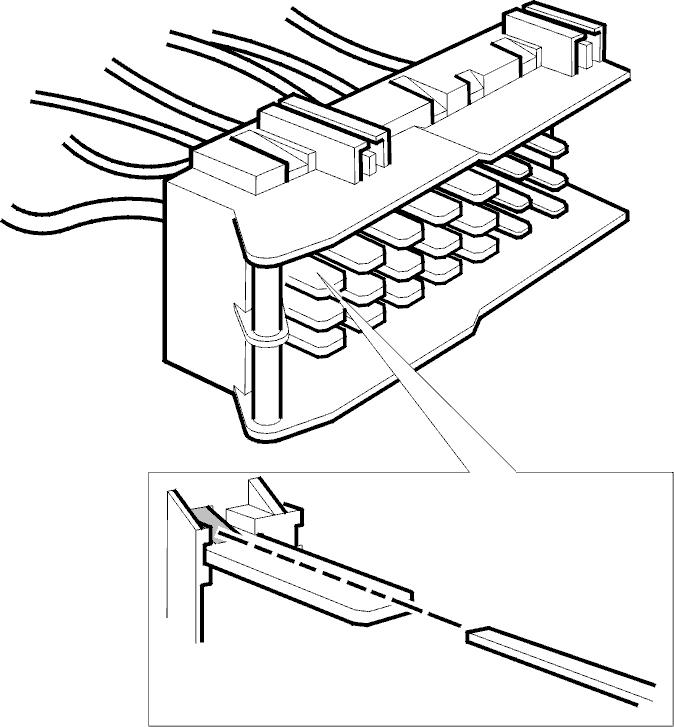

Fig 3: Housing With Tabs

Courtesy of VOLVO CARS OF NORTH AMERICA.

Choose a terminal removal tool with an end that matches the cavity opening.

The narrow ended tool is 1.5 mm wide.
The wider end is 2.7 mm wide.

Press the cable terminal in the cavity forwards as far as it will go to free the locking tab from the cavity catch.

Insert the terminal removal tool in the groove as shown in the illustration.

Always follow the instructions in Using terminal removal tools which give the correct working procedure.

Proceed to chapter New cable terminal Seal SWS and plug . Replacing a cable terminal in order to crimp a new cable terminal.
