Gutter, Replacing: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

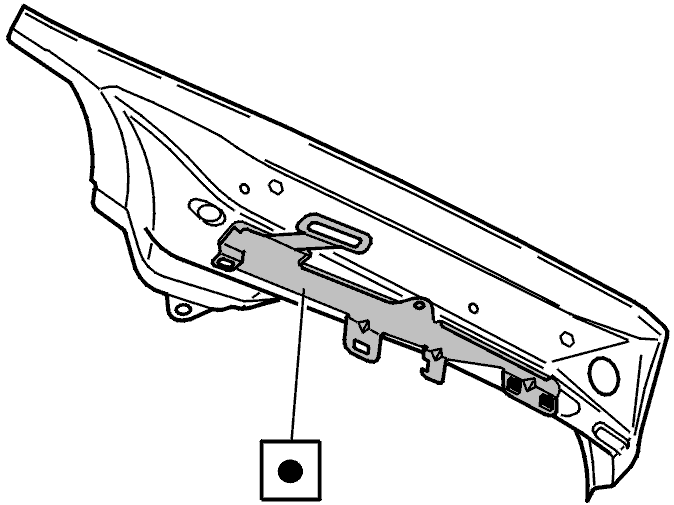

There is a bracket on the underside of the gutter.
Right-hand side:
The bracket is the mounting for the handle to fold the backrests.
For dimensions, see Rear end, alignment chart .
Left side:
The bracket is the mounting for the handle to fold the backrests and central electrical unit.

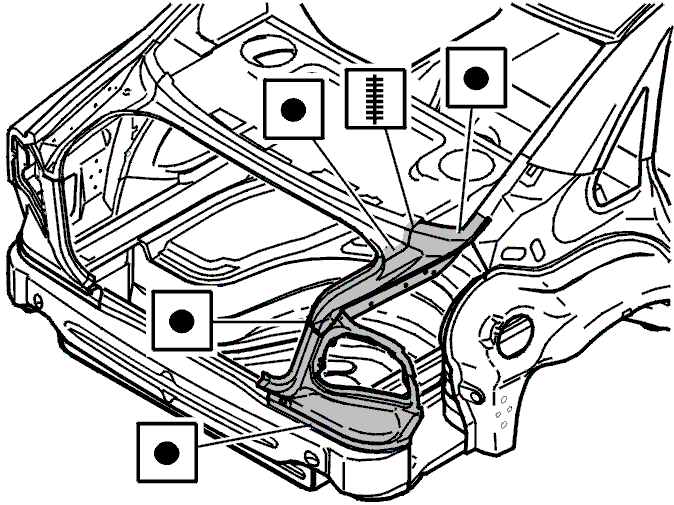

Weld the bracket into place in the gutter using four spot welds.
For dimensions see Rear end, alignment chart .
Carry out procedure Replacing the rear fender (Bifuel) or Replacing (other cars).
Secure the rear fender.

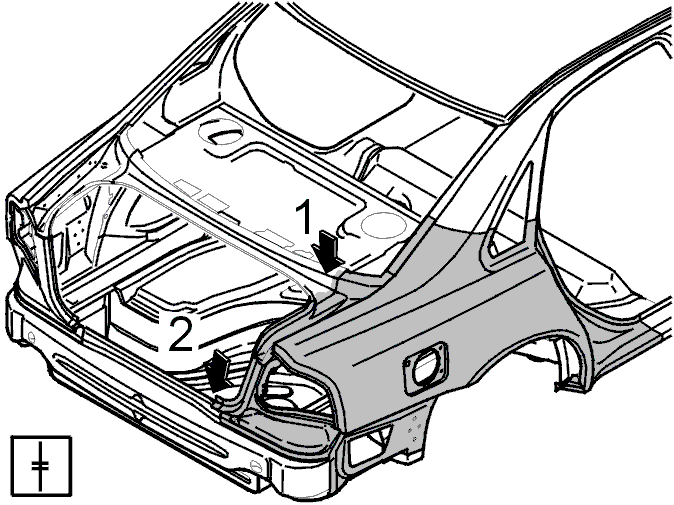

Align and weld the gutter (1) so that it stays in position.
Locate and weld the face (2) so it stays in position.
If necessary: Install the tailgate.
Check the alignment.
Remove the rear fender and tailgate.
Weld the gutter.
Weld the face.
