Replacing the rear fender
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.
When replacing the rear fender on cars with gas power the rear fender must be modified to allow for filling the tank.
First carry out procedure; REAR FENDER, REPLACING .
HINT: It is easiest to use the old rear fender as a template.

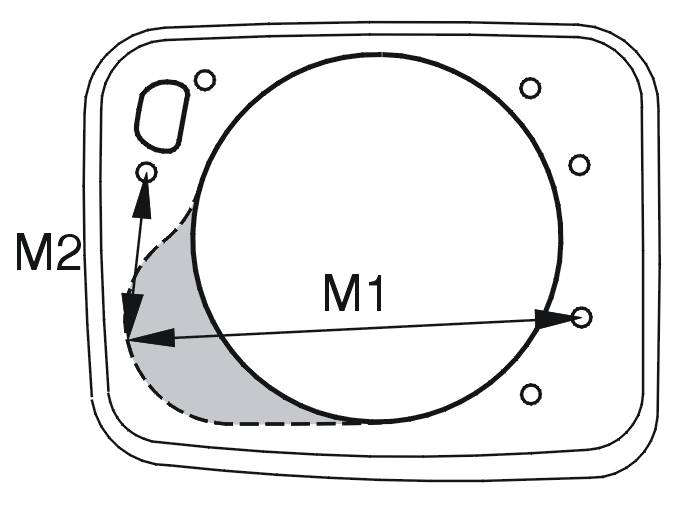

Measure out the deepest point of the gray field.
Use the steel spring for the rubber boot as a template to obtain the correct shape for the hole.
Saw out as shown.
M1 = 160 mm.
M2 = 52 mm.
When storing the tank must be removed. See Replacing the gas tank .
