Removing the bumper mounting

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Connector Antenna

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the connector (2)
the antenna.

Lift the latch for the connector. Pull carefully.

Remove the rubber seals (1). Remove the nuts (1).

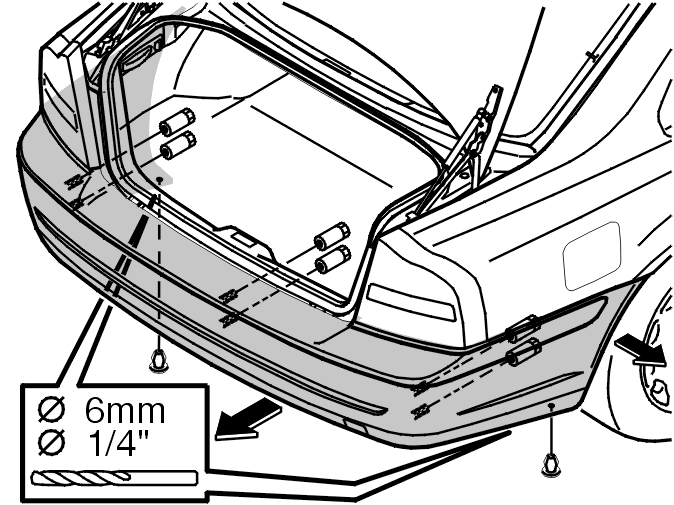

Fig 2: Drilling Out Rivets In Underside

Courtesy of VOLVO CARS OF NORTH AMERICA.

Drill out the rivets in the underside. See Removing rivet .
