Replacing the front side bracket

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

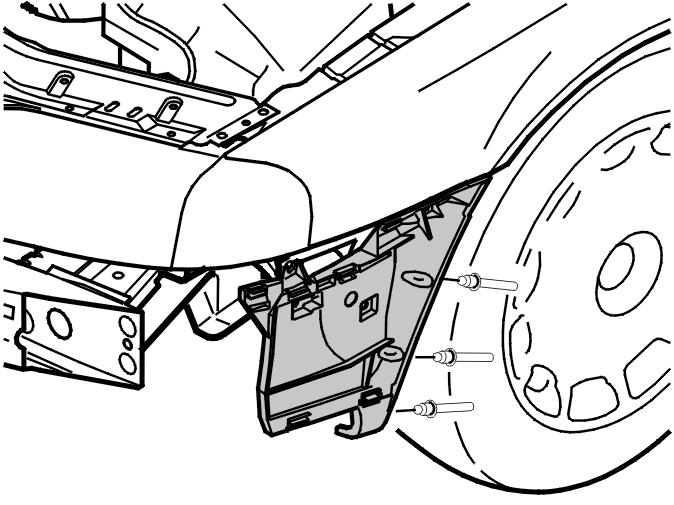

Fig 1: Fender Liner And Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the 3 rivets for the bracket and fender liner. See Removing rivet

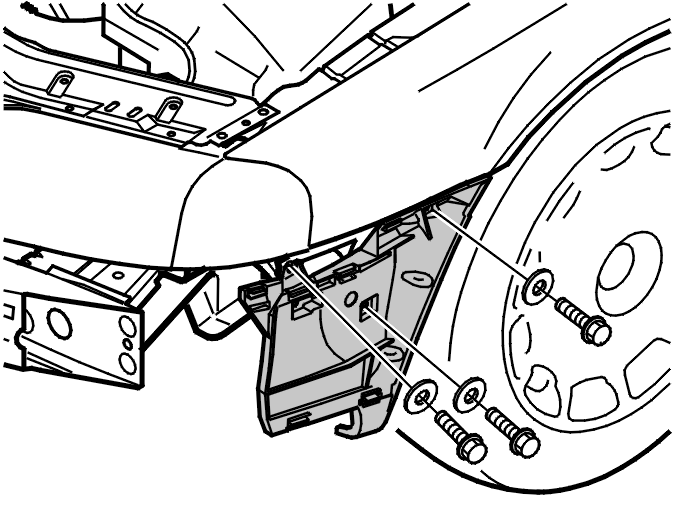

Fig 2: Finder Liner Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

the 3 screws.

Replace the bracket.

Install:

the 3 screws. Tighten
the 3 rivets for the bracket and fender liner.
