Next test measurement

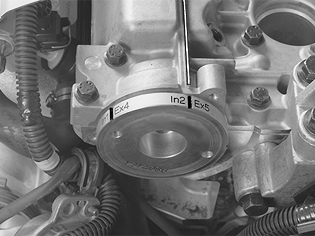

Fig 1: Identifying Rear Intake Camshaft
GLL108906Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the crankshaft in the direction of engine rotation until the next marking In2/Ex5  is opposite the flange on top of the cylinder head. Perform the test measurement according to the previous description.

Continue by measuring the remaining valve clearances according to the markings on tool 9995754 .
