Removing The Balls

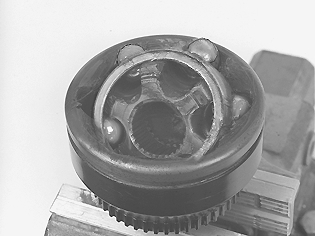

Fig 1: Turning Inner Joint Ring And Ball Holder

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the inner joint ring and ball holder. Remove the ball bearings clockwise one by one.

Use the marking as the starting point when removing. See Marking The Outer Ring For The Outer Constant Velocity Joint, Ball Holder And Inner ring .

Place the ball bearings in order so that they can be reinstalled in the same positions.
