Marking The Outer Ring For The Outer Constant Velocity Joint, Ball Holder And Inner Ring

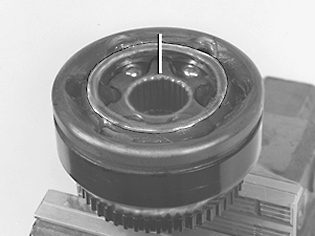

Fig 1: Identifying Mark On Outer Ring Of Outer Constant Velocity Joint, Ball Holder And Inner Ring

Courtesy of VOLVO CARS OF NORTH AMERICA.

Mark components in relation to each other.

Use an electric scriber.
