Installing The Inner Ring In The Ball Holder

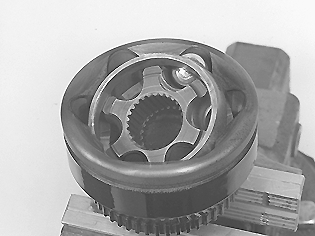

Fig 1: Identifying Inner Ring & Ball Holder

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the inner ring in the ball holder.

Locate the markings to each other. Install a ball bearing.

NOTE:

The location of the ball bearings.

Turn the inner ring and the ball bearing holder.

Install the balls one by one in the same positions as before. See Removing The Balls .
