Brush The Drive Shaft Thoroughly With Soapy Water

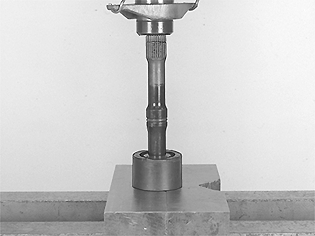

Fig 1: Pressing Out Vibration Damper From Drive Shaft
GLL109817Courtesy of VOLVO CARS OF NORTH AMERICA.

Position The Drive Shaft On A Support In A Workshop Press. Carefully Press Out The Vibration Damper From The Drive Shaft.

Clean The Assembled Constant Velocity Joint And Blow Clean. Grease The Joint See lubricate The Constant Velocity Joint Thoroughly

Install The Boot On The Shaft. Carry Out Operations apply Grease In The Boot  And vent The Boot
