Drive shaft, right, replacing (B8444S, TF-80SC AWD; 2005-: Installation

Lubricate the drive shaft sealing surface.

Use oil. See: Lubrication transmission .

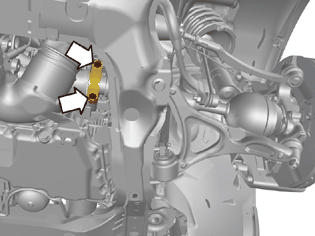

Fig 1: Leaving Lower Screw In Place

Courtesy of VOLVO CARS OF NORTH AMERICA.

Use new screws and nuts.

Adjust the position of the wheel spindle/spring strut. See: Wheel knuckle / spring strut, calibrating .

Fig 2: Identifying Brake Grommets

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Identifying Brake Grommet

Courtesy of VOLVO CARS OF NORTH AMERICA.

Tighten, see: Summary of tightening torques for specific components .

Fig 4: Removing Drive Shaft Screw Using A Screwdriver As A Counter Hold On Brake Disc

Courtesy of VOLVO CARS OF NORTH AMERICA.

Tighten, see: Summary of tightening torques for specific components .

Fig 5: Locating Driveshaft Cap And Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.

M8
