Installing the brake disc

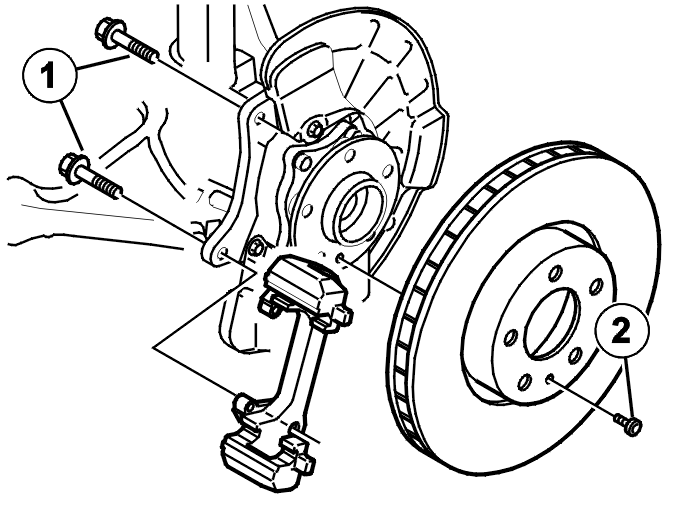

Fig 1: Identifying Brake Disc Centering Screw And Caliper Bracket Mounting Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Be careful when handling the new brake disc. Careless handling can cause damage to the brake disc (out-of-true).

Install:

the brake disc. Tighten the screw (2), M6
the caliper holder. Tighten the two screws (1). See Summary of specific components and tightening torques .
