Removing the Lock Assembly

Remove the knee bolster. See Knee Bolster .

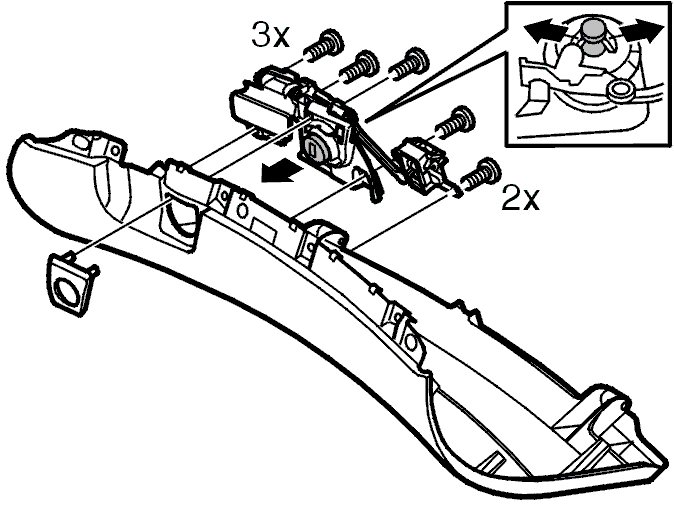

Fig 1: Removing Screws, Link, Cover, And Lock Handle

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• five screws
• the link
• the cover
• the lock handle.
