Knee Bolster

Removing knee bolster

Remove the glove compartment. See Glove Compartment, Replacing .

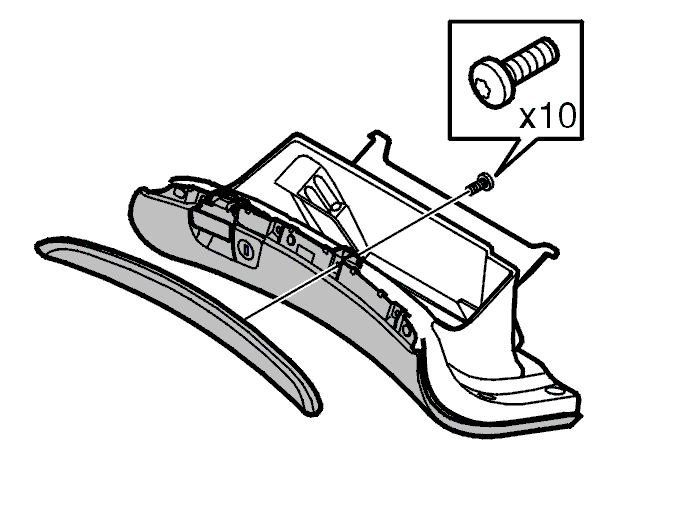

Fig 1: Glove Compartment Lid Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove ten screws.

Separate the glove compartment lid.

Fig 2: Spring Washer & Knee Bolster

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• a spring washer
• the knee bolster.

Installing knee bolster

Install:

• In reverse order.
