Removing Upper Seat Belt Guide Panel Under The Parcel Shelf

WARNING: This page is about a different variant/trim than selected.

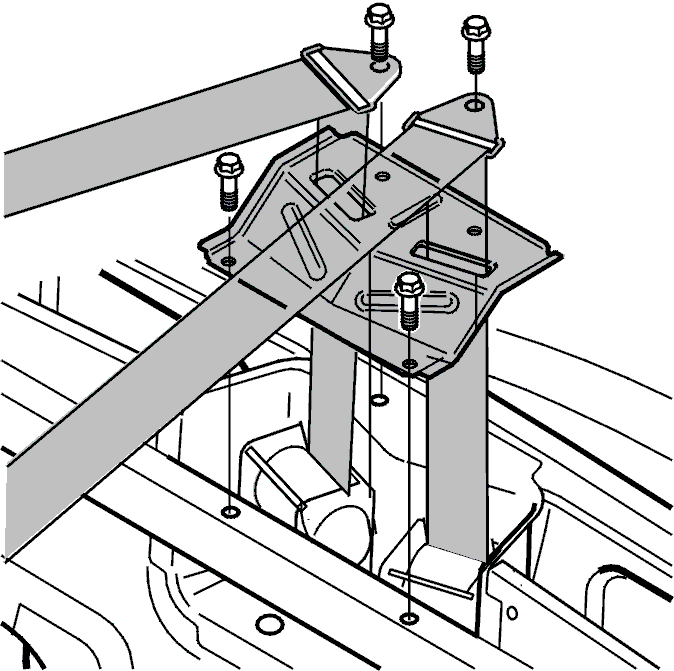

Fig 1: Identifying Screw At Upper Seat Belt Guide Front Edge And Screws At Upper Seat Belt Guides And Upper Seat Belt Guide Panel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

parcel shelf. See: Parcel shelf
2 screws at upper seat belt guide front edge.
2 screws at upper seat belt guides and upper seat belt guide panel.
the panel by angling upper seat belt guide and belt tongue and removing through the seat belts.

Installation

When installing tighten the screws to 48 Nm .
