Removing The SRS Control Module

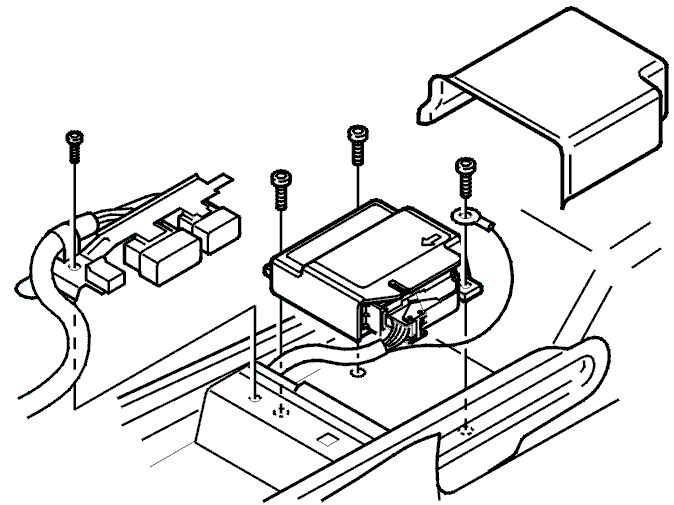

Fig 1: Identifying Control Module Cover, Screws And Screw For Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• panels and cover. Removing panels and cover .
• the screws and connectors. Removing screws and connectors .
• 1 screw for the bracket and push the bracket and connectors to one side.
• 1 control module cover.
• 3 Torx 30 screws for the control module.

lift up the control module.

Removing the connector for the SRS control module

Fig 2: Removing Connector From SRS Control Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the control module connector by pressing in the catch (1) and folding the striker plate forward (2).
• the connector from the control module by following the directional arrow (3) in the illustration.
