Removing the SRS control module

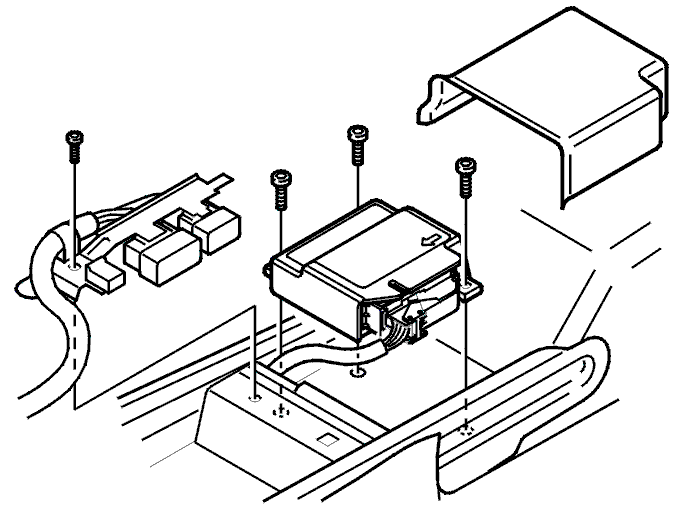

Fig 1: Identifying SRS Control Module, Connectors, And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• panels and cover. See: Removing panels and cover .
• the screws and connectors. See: Removing screws and connectors .
• 1 bracket screw and push the bracket and connectors to one side.
• 1 control module cover.
• 3 Torx 30 control module screws.
• 1 screw for the connector.
• lift up the control module.
