Removing The Panel
WARNING: This page is about a different variant/trim than selected.

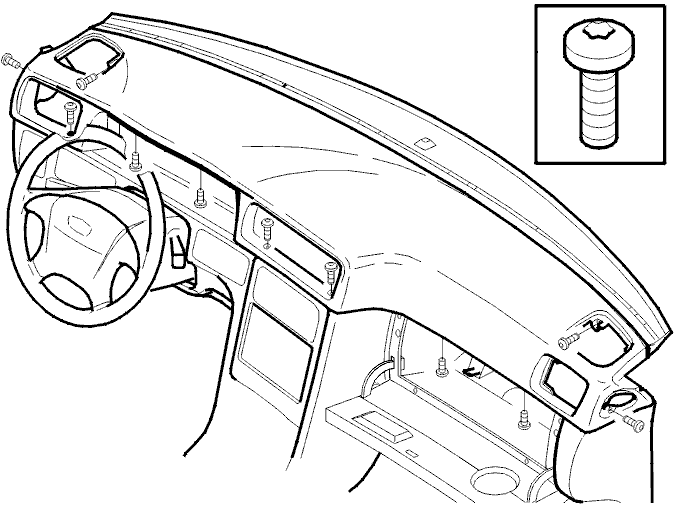

Remove 11 Torx 20 screws for the panel.
CAUTION:
If the panel with a non-deployed passenger airbag module is removed temporarily, it must be placed with the top facing upwards in a protected place.
Remove the climate control system by first removing the stereo. Then press out the climate control system from the inside.
