Removing The Glove Compartment

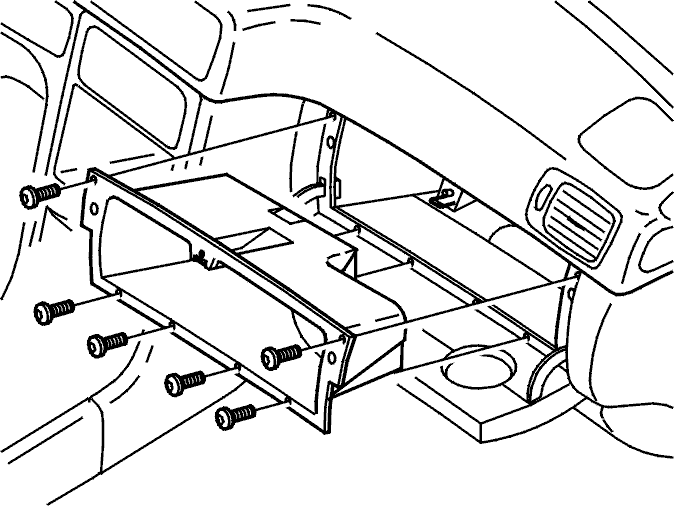

Fig 1: Identifying Glove Compartment And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• 6 Torx 20 screws for the glove compartment insert.
• the cover for the CD ROM reader. (Only cars equipped with RTI system).
