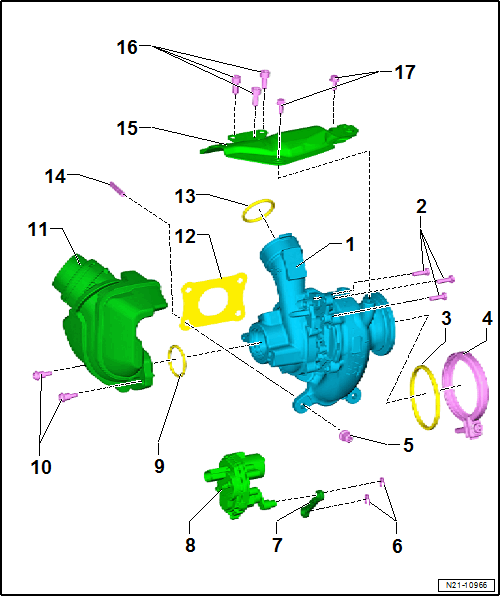

Overview - Turbocharger
- Turbocharger
- Removing and Installing. Refer to TURBOCHARGER, REMOVING AND INSTALLING .
- Bolt
- 8 Nm +45°
- Replace after removing
- Seal
- Replace after removing
- Removing and Installing. Refer to Installing - To do so pry out the seal between the turbocharger and the catalytic converter and replace. .
- Screw-Type Clamp
- Replace after removing
- Tightening specification and sequence. Refer to Fig 2.
- Nut
- 14 Nm
- Replace after removing
- Clip
- Replace
- Operating Lever
- Charge Air Pressure Control Module -GX34-
- Consists of:
- Charge Air Pressure Actuator -V465-
- Charge Air Pressure Actuator Position Sensor -G581-
- Removing and Installing. Refer to Charge Air Pressure Control Module -GX34-, REMOVING AND INSTALLING .
- Consists of:
- O-Ring
- Replace after removing
- Bolt
- 9 Nm
- Connection
- Removing and Installing. Refer to TURBOCHARGER CONNECTIONS, REMOVING AND INSTALLING .
- Seal
- Replace after removing
- O-Ring
- Replace after removing
- Stud Bolt
- 16 Nm
- Bolted in the cylinder head
- Heat Shield
- Removing and Installing. Refer to Removing - Remove the upper heat shield over the turbocharger and the catalytic converter. .
- Bolt
- 25 Nm
- Bolt
- 8 Nm
- The right bolt seen from the direction of travel is not installed on all vehicles
