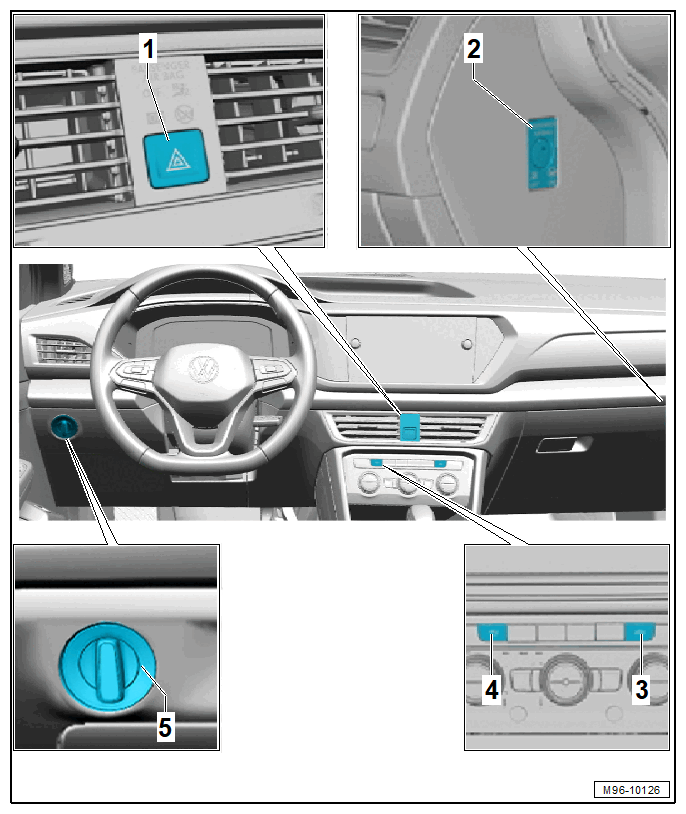

Component Location Overview - Instrument Panel Controls
- Emergency Flasher Switch -EX3-
- Removing and Installing. Refer to Emergency Flasher Switch -EX3-, REMOVING AND INSTALLING .
- Front Passenger Airbag Deactivation Key Switch -E224-
- Overview. Refer to OVERVIEW - FRONT PASSENGER AIRBAG .
- Right Seat Heating Button -E654-
- Integrated in the Climatronic/A/C display control head
- Cannot be replaced separately if faulty.
- Display Control Head, Removing and Installing. Refer to FRONT DISPLAY AND CONTROL HEAD, REMOVING AND INSTALLING .
- Left Seat Heating Button -E653-
- Integrated in the Climatronic/A/C display control head
- Cannot be replaced separately if faulty.
- Display Control Head, Removing and Installing. Refer to FRONT DISPLAY AND CONTROL HEAD, REMOVING AND INSTALLING .
- Rotary Light Switch -EX1-
- Removing and Installing. Refer to Rotary Light Switch -EX1-, REMOVING AND INSTALLING .
