Overview - Front Passenger Airbag

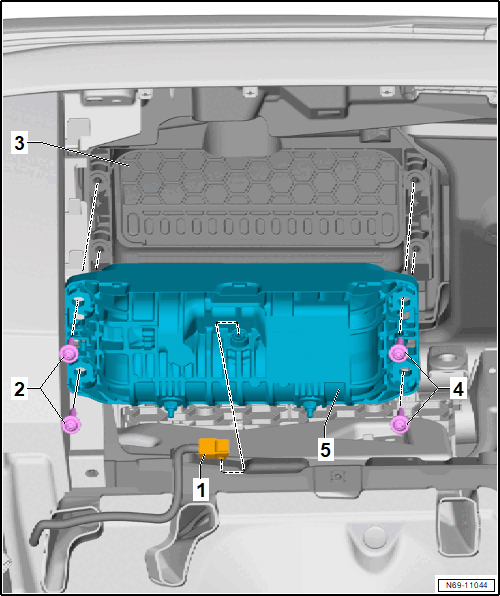

Fig 1: Exploded View Of Front Passenger Airbag

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Connector
- For the Front Passenger Airbag Igniter 1 -N131-
Bolts
- Quantity: 2
- Replace or clean with Locking Fluid before installing. Refer to the Parts Information for the allocation.
- 8 Nm
Instrument Panel
- Replace the instrument panel after an airbag has deployed. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
Bolts
- Quantity: 2
- Replace or clean with Locking Fluid before installing. Refer to the Parts Information for the allocation.
- 8 Nm
Front Passenger Airbag
- With Front Passenger Airbag Igniter 1 -N131-
- Locking and activating possible using the key switch
- Removing and Installing. Refer to FRONT PASSENGER AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
