Overview - Steering Wheel

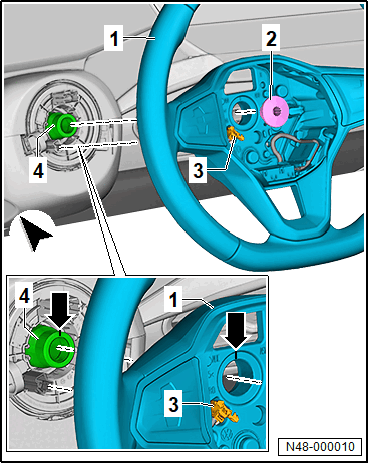

Fig 1: Steering Wheel

GWWN48-000010

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Steering Wheel
- Refer to Steering Wheel, Removing and Installing .
Bolt
- Always replace after removing
- 30 Nm +90°
Connector
Steering Column
- Refer to Overview - Steering Column .
- Refer to Steering Column, Removing and Installing .
