Overview - Radiator/Radiator Fan

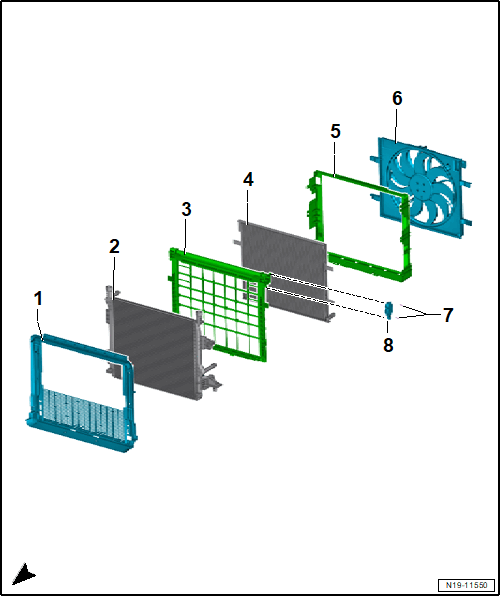

Fig 1: Exploded View Of Radiator/Radiator Fan

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Air Duct
Radiator
- Refer to Radiator Module, Removing and Installing .
Radiator Blind
- Refer to Radiator Module, Disassembling and Assembling .
Capacitor / Gas Cooler
- Dependent on vehicle equipment/version
- Refer to OVERVIEW - CONDENSER, R1234YF .
Rear Air Duct
Fan Shroud with Radiator Fan -VX57-
- With Radiator Fan Control Module -J293-
- With Radiator Fan -V7-
- Refer to Overview - Fan Shroud and Radiator Fan .
- Refer to Fan Shroud with Radiator Fan, Removing and Installing .
Bolt
- Quantity: 2
- 2 Nm
Radiator Blind Adjustment Motor -V711-
- Refer to Radiator Blind Adjustment Motor V711, Removing and Installing .
