Overview - Fan Shroud And Radiator Fan

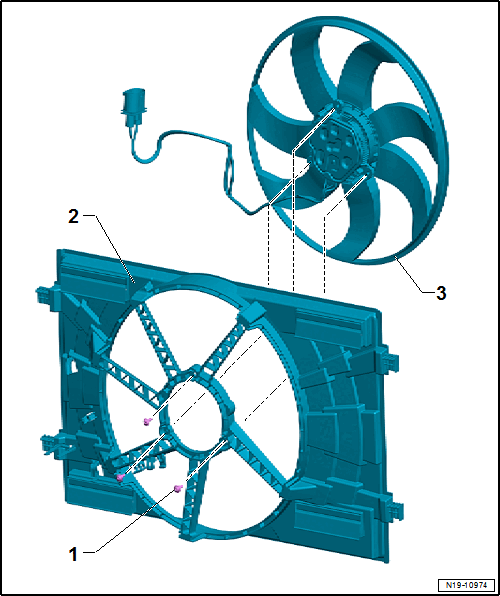

Fig 1: Exploded View Of Fan Shroud And Radiator Fan
GWWN19-10974Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolt
    • Quantity: 3
    • 6 Nm
  2. Fan Shroud
  3. Radiator Fan -VX57-
