Overview - Steering Column Switch Module, With Electronic Ignition Lock

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

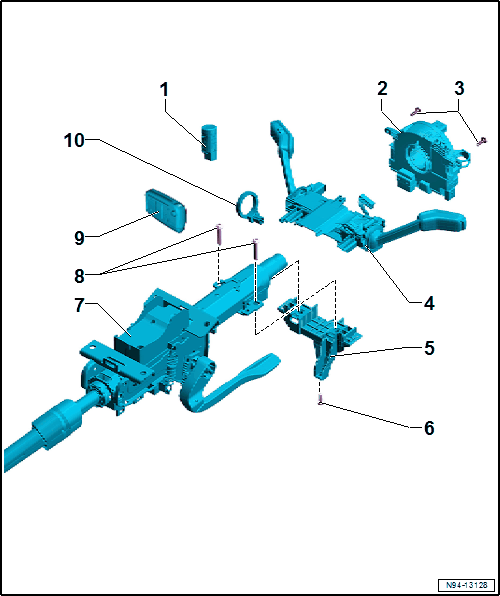

Fig 1: Exploded View Of Steering Column Switch Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Start System Button -E378-
- Removing and installing. Refer to Start System Button -E378-, REMOVING AND INSTALLING .
Steering Column Electronics Control Module -J527-
- With Airbag Spiral Spring/Return Spring with Slip Ring -F138-
- Removing and installing. Refer to Steering Column Electronics Control Module -J527-, REMOVING AND INSTALLING .
Bolts
- Quantity: 3
- 1.1 Nm
Steering Column Combination Switch
- With Turn Signal Switch -E2-, Windshield Wiper Intermittent Mode Switch -E22-
- Removing and installing. Refer to Turn Signal Switch -E2-, REMOVING AND INSTALLING .
Base Carrier
- For the steering column combination switch
- Removing and installing. Refer to STEERING COLUMN COMBINATION SWITCH BASE CARRIER, REMOVING AND INSTALLING, VEHICLES WITH ELECTRONIC IGNITION LOCK .
Bolt
- Lower steering column trim panel retainer
- Tightening specification. Refer to OVERVIEW - STEERING COLUMN TRIM PANEL .
Electronic Steering Column Lock Control Module -J764-
- Removing and Installing. Refer to ELECTRONIC STEERING COLUMN LOCK CONTROL MODULE -J764-, REMOVING AND INSTALLING
Bolts
- Quantity: 2
- For the base carrier for the steering column combination switch
- 9 Nm
Ignition Key
Anti-Theft Immobilizer Reader Coil -D2-
- Removing and installing. Refer to ANTI-THEFT IMMOBILIZER READER COIL, REMOVING AND INSTALLING, VEHICLE WITH ELECTRONIC IGNITION LOCK .
