Overview - Steering Column Trim Panel

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

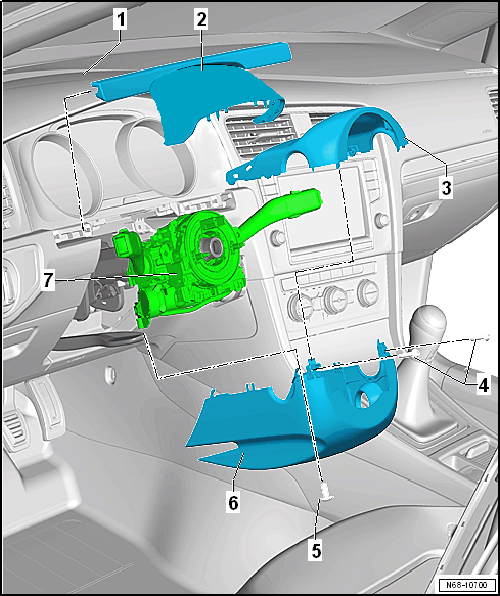

Fig 1: Exploded View Of Steering Column Trim Panel

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Instrument Panel
- Overview. Refer to OVERVIEW - INSTRUMENT PANEL .
Upper Steering Column Trim Panel Gap Cover
- Clipped with the upper steering column trim panel
Upper Steering Column Trim Panel
- Removing and Installing. Refer to UPPER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly.
Bolt
- Quantity: 2
- 2.5 Nm
Bolt
- 2.5 Nm
Lower Steering Column Trim Panel
- Removing and Installing. Refer to LOWER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .
Steering Column Switch Module
- Overview. Refer to OVERVIEW - STEERING COLUMN SWITCH MODULE .
